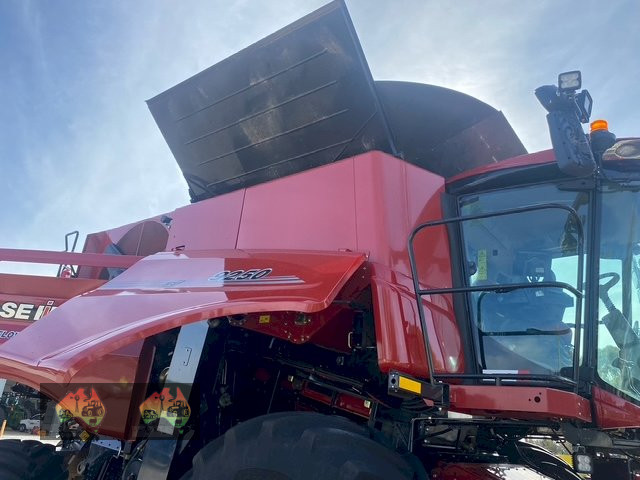

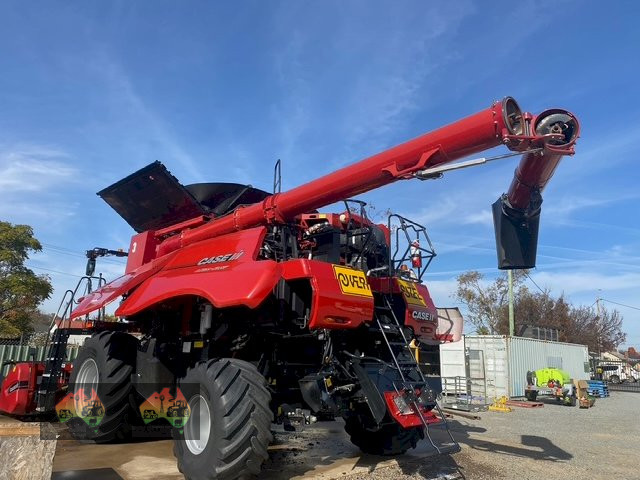

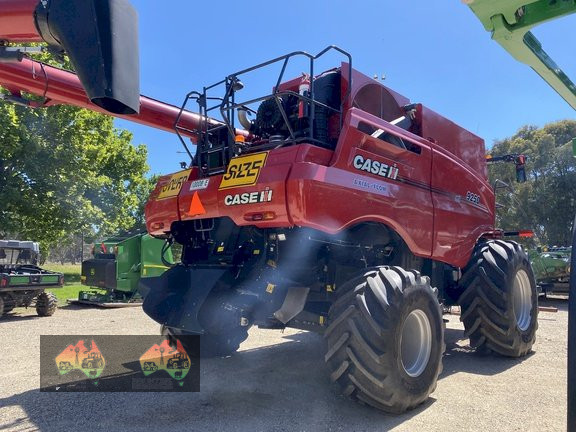

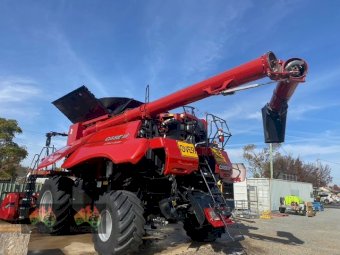

(8891) Case IH - 9250 ( Located Near Wagga Wagga Nsw )

Listing Details

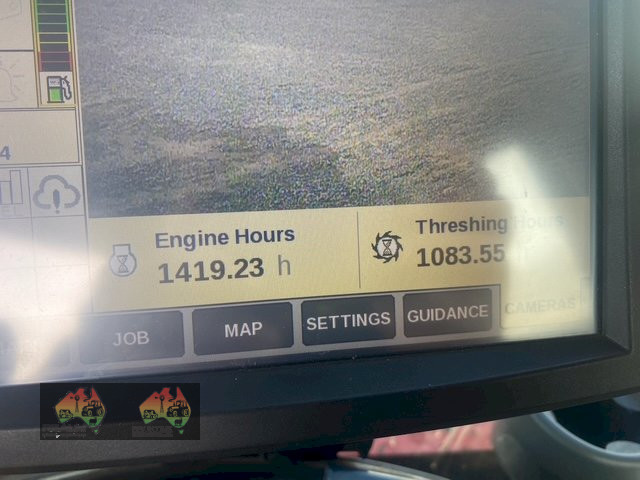

Case 9250, base unit only, 1417 Engine and 1083 Threshing Hours,

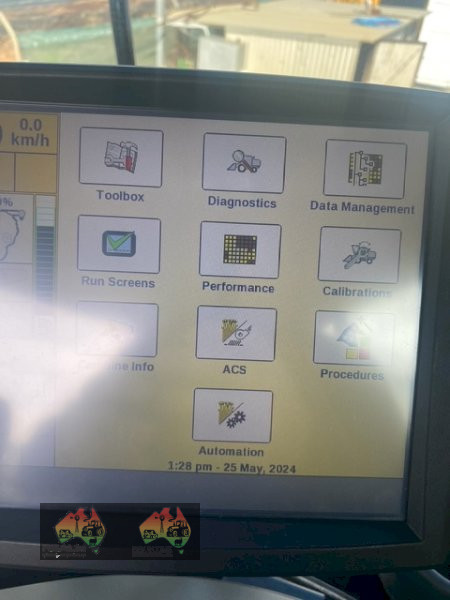

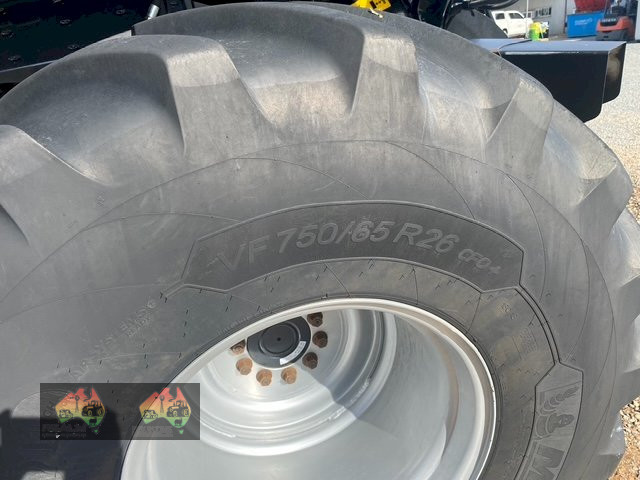

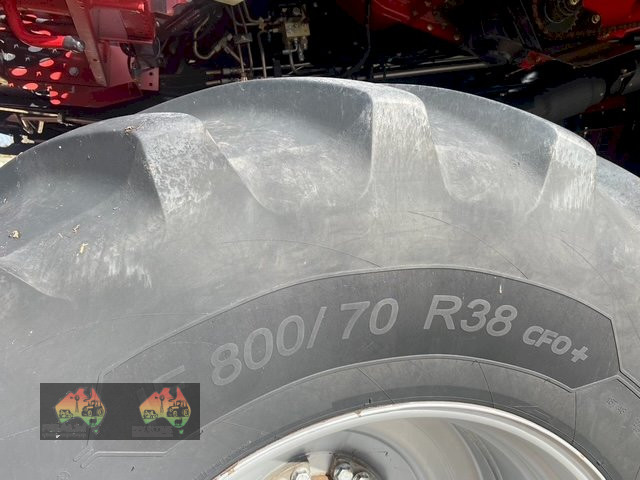

AFS Harvest Command, IF 800/70R/38 and VF 750/65R/26 Michelin Brand.
About Us We have a wide range of used machines available with 20 locations throughout New South Wales, We can organize interstate travel and delivery plus competitive finance, With 70 years of experience in the agricultural market, we also have an extensive network of parts, service and technology support to ensure we keep you running, and to provide you with a complete solution

PRE SALE INSPECTION - Case IH 9250
-Basically full1200 hr service
-Pre delivery setup
-Pto wire harness
-Possible feeder rebuild
Check Sheet
Item Yes/No Comment/Part Used
Header Pre season service

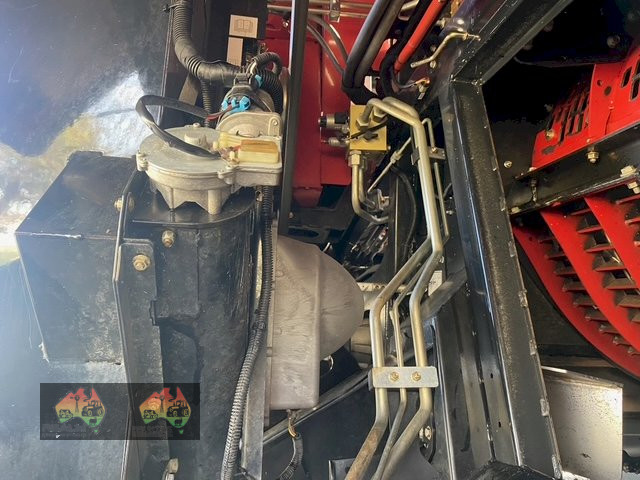

Engine
check and adjust valve clearance
check phonic wheel timing
check cam timing to the crankshaft
Check engine fan bearing ,all engine belts
,tensioner bearings and bushes
Check history
Replace alternator belt and air con belt
Change engine oil
32 ltr 10w40 uni tek
Change engine oil filters
Change crank case breather filter and o-rings
replace waterpump and coolant
40 ltr coolant
Inspect radiators
Change fuel filters
Change engine air cleaners

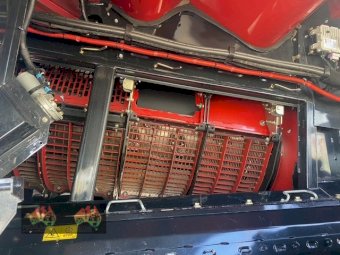

Rebuild suction fan for air screen
Replace rotary air screen plastic bushes and
pins
Hydraulics / Gearboxes
Change PTO oil
25 LTR HI-TRAN
Change PTO oil filter
Change hydraulic oil
40 ltr HI-TRAN
Change hydraulic oil filters
Change rotor gearbox oil
8 ltr HI-TRAN
Replace micky mouse gearbox oil HI-TRAN
Replace feeder conveyor gearbox oil HI-TRAN
replace bubble up gearbox oil 3ltr HI-TRAN
Change ground drive gearbox oil
20 ltr 80w90 gear oil
Change final drive oils
20 ltr 80w90 gear oil
Change unloader gearbox oil
3.5 ltr 8OW90 gear oil

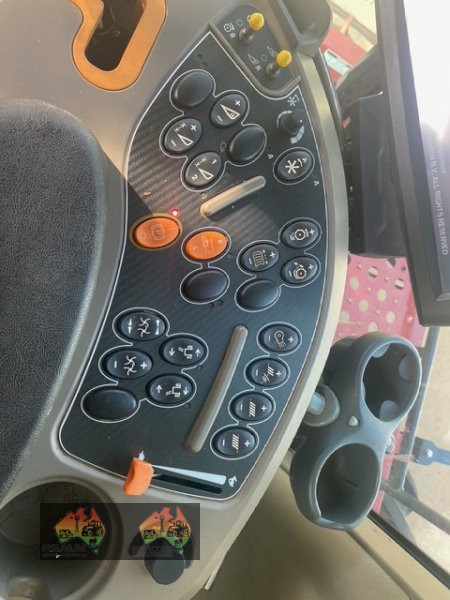

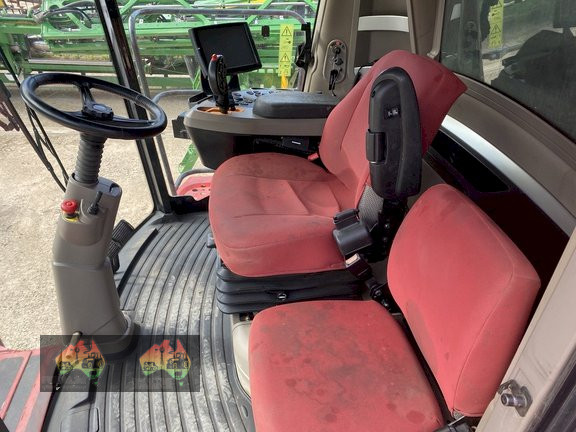

Cab and frame
Change cab filters
Check brake fluid
Check tyre pressures

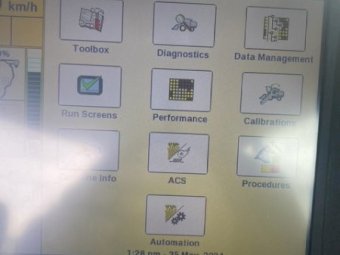

Check all electronic actuator calibrations

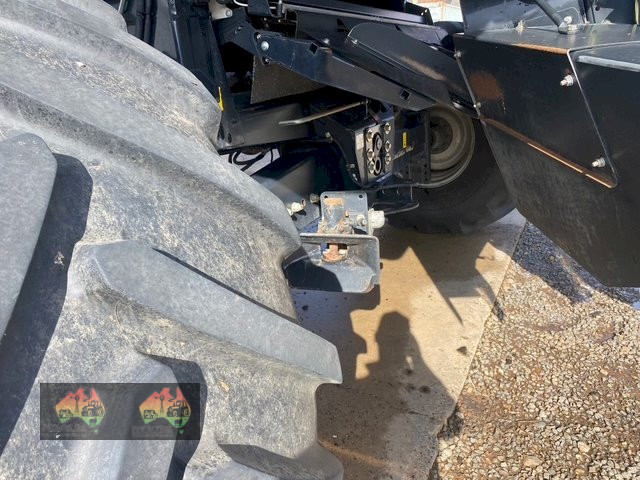

Jack up rear axle and check wheel bearings
and dust caps
Check uni joints on all drive shafts and
pillow block bearings
Feeder house
Sprocket getting low check feeder output
drive shaft
Clean and inspect feeder chain adjusters
Check feeder floor alignment ( chains not
contacting lip)
Feeder house front drum position

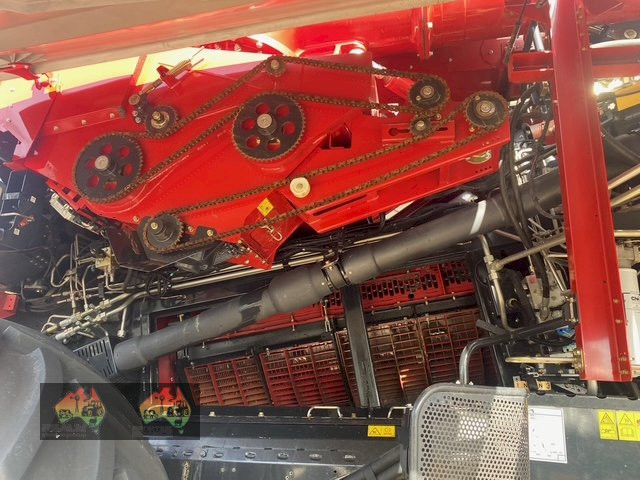

Separator
Inspect transition cone, rotor impeller
plates and vanes
Check rotor cage alignment and pinch point
Calibrate concaves
Check detent spring in rotor gearbox
Cleaning
✓ Ok
Replace pitman arm bearings and cross shaft
bearings loctite drive pulley
Inspect cleaning fan bearings Replace
Remove sieves clean and check
Check Clean grain and tailings bed auger
bearings
Replace has been blocked a few times
Check clean grain elevator chains and
sprockets and bottom boot
Lots of surface rust possibly been
washed with bore water
Remove belt and check tailings processor
bearings and impellers
Inspect clean grain elevator bottom boot and
head for stainless plating
Residue handling

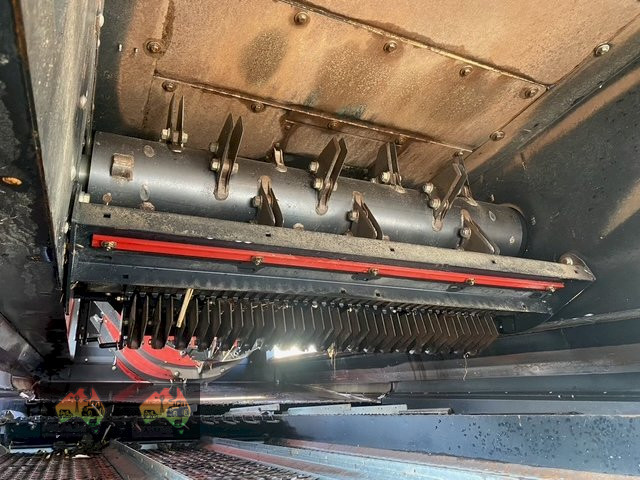

Check chopper/beater blades Some blades missing
Check chopper/beater bearings
Check spreader paddles and deflectors
Grain bin and unloading
Replace 60h drive chains x4 boxes ,x4 half
links, x4 joiners
Check bubble up auger
Fit grease nipples to elbow
Check unloader saddle position and adjust if
required
Spacer in wrong spot and missing a bolt
Check unloader hyd cylinder has been set
correctly with the extension fitted
Check unload stabiliser bar adjustment
Check operation of grain bin lids
Check unload drive auger splines
Pre season maintenance
Rotate chopper blades Missing sections
Replace engine guard gas strut
Replace rear shacker roller bearings
Adjust left hand side guards
Rotor wiring harness damaged Won’t go into gear
Engine tune up
Remove all engine guards and covers
Remove tappet cover and timing cover
Install turnover tool and rotate engine in
direction of rotation to 54 degrees before
TDC
Check phonic wheel timing
Rotate engine to TDC to check cam lift with
dial gauge
Check all valve clearances and injector
preload
Tension adjuster locks to 35nm +- 0.5 nm
Fit new crankcase breather filter and orings
Refit engine covers guards and pluming
Run and check engine all ok
Timesheets
Date Name Description Start End Total
26/06/2024 Ben 15:55 17:30 1.58
26/06/2024 Markie Dixon 15:55 17:00 1.08

Don't miss out Inspection recommended
Contact Raymond Cossar - 0458791114
Office: 0419182804
Email: raymondc@realmgroup.com.au
( Finance Available www.payintime.com.au )
